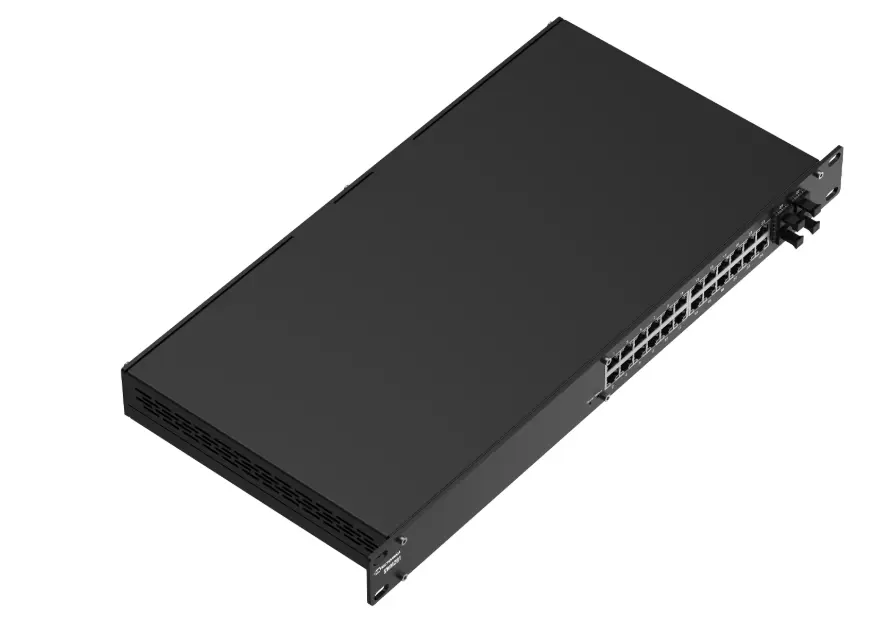

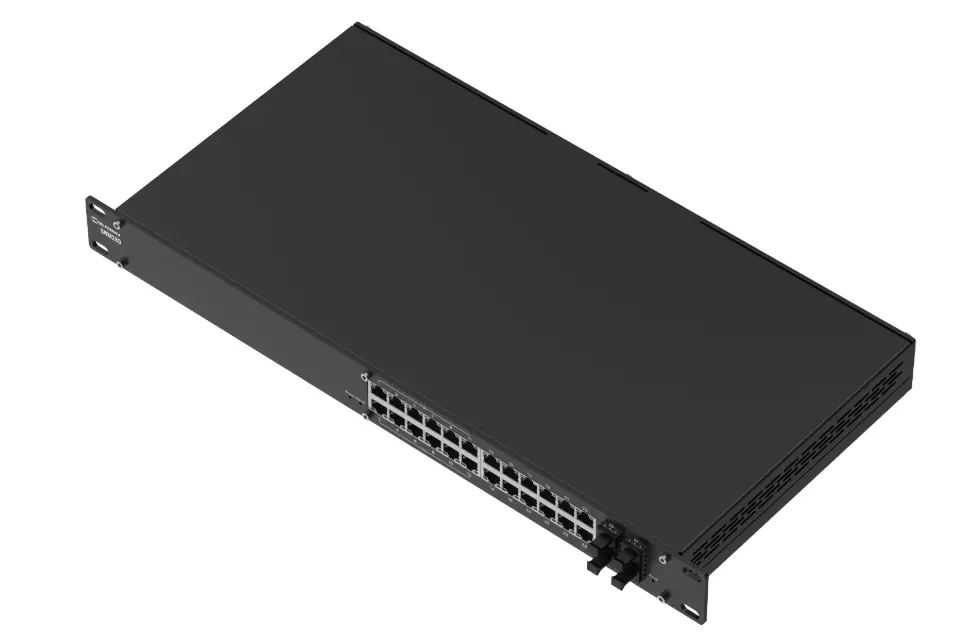

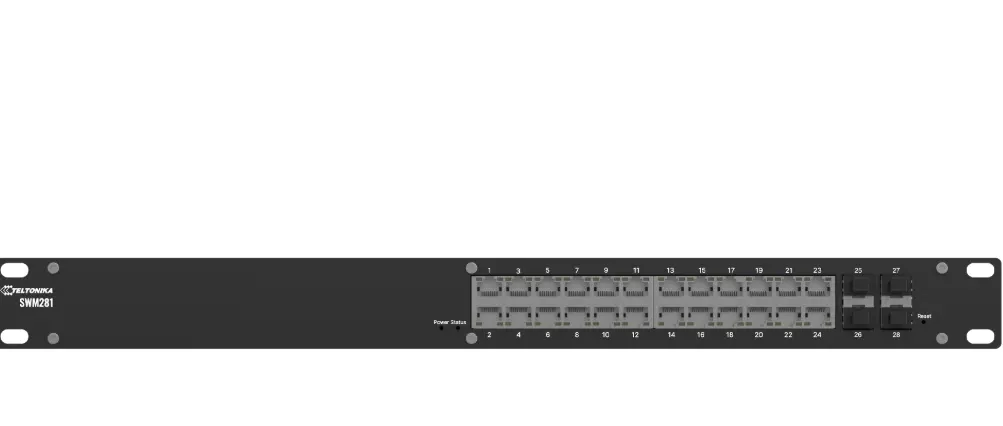

SWM281
Profinet Class B conformance (available with optional order code)
4 x SFP ports
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Multi-layer managed 24 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP)
MRP client role, MRP manager role
Loop protection, Forwarding table, VLAN, STP/RSTP
DHCP server, DHCP client, DHCP static leases capable of using MAC with wildcards
Enable/disable, link speed control, port isolation, EEE (802.3az) management, Port Mirroring
Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address
PAM — preshared key, Radius & TACACS+, IP & login attempts block
Port VLAN separation
Port-based network access control client and server
Allow specific MAC addresses to connect through specified ports, ignore unauthorized or disable the port if an unauthorized MAC address is detected
Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com
Realtek, single core, 500MHz, MIPS-4KEc
128MB, DDR3
16 MB serial flash
Update FW from file, check FW on server, configuration profiles, configuration backup
Update FW
Update FW/configuration for multiple devices at once
Update FW without losing current configuration
A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration
SwmOS (OpenWrt based Linux OS)
Busybox shell, Lua, C, C++
SDK package with build environment provided
The Package Manager is a service used to install additional software on the device
C14 connector
100-240 VAC, 50/60 Hz
Idle: 5.5 W / Max: 20 W
24 x RJ45 ports, 10/100/1000 Mbps
4 x SFP ports
1 x Power LED, 48 x ETH status LEDs, 1 x Status LED, 4 x SFP status LEDs
1 x C14 connector
Software reset button
1 x Grounding screw
Anodized aluminum housing and panels
483 x 44 x 234 mm
1853 g
Rack mounting kit
0 °C to 50 °C
10% to 90% non-condensing
IP30
CE, UKCA, CB, RCM, FCC, IC
Yes
Yes
Yes
802.1p class of service, 802.1x port-based network access control, 802.1Q VLAN
Port priority, DSCP priority, 802.1p priority, TOS
SP/WFQ/WRR
Rate limiting, storm control
Port-based shaping
Cable diagnostic, ping, traceroute, nslookup
56 Gbps
83.33 Mpps
512 KB
8K entries
10000 bytes
