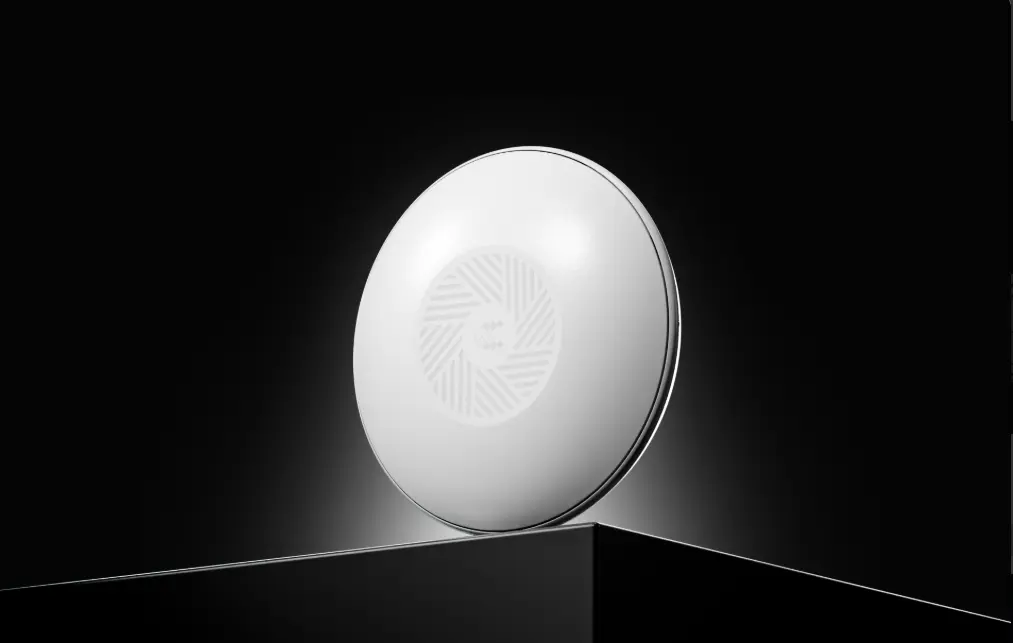

TAP100
802.11b/g/n (Wi-Fi 4)
WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
SSID stealth mode and access control based on MAC address
Up to 100 simultaneous connections
Wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k)
Allowlist, blocklist
Once scanned, a user will automatically enter your network without needing to input login information
Forward Wi-Fi hotspot landing page to a subsequent connected device
1 x RJ45 port 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
TCP, UDP, IPv4, IPv6, ICMP, HTTP, HTTPS, SSL v3, TLS, ARP, SSH
DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
Hotspot 2.0 is a Wi-Fi standard that enables seamless, secure, and automatic connection to trusted wireless networks
Real-time monitoring, wireless signal charts, traffic usage history
SSH key based, HTTPS, CLI, IP & Login attempts block, time-based login blocking, built-in random password generator
Tag-based VLAN separation
Certificate creation tool allows to create CA, server, client, let's encrypt, SCEP certificates
Port-based network access control client
HTTP(S), MQTT, Azure MQTT
Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature
Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com
HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log
Firmware update from server, automatic notification
SSH (v1, v2)
Receive email message status alerts of various services
Management API over HTTP/HTTPS
Teltonika Remote Management System (RMS)
Mediatek, 580 MHz, MIPS 24KEc
64 MB, DDR2
16 MB, SPI Flash
Update FW from file, check FW on server, configuration profiles, configuration backup
Update FW
Update FW/configuration for multiple devices at once
Update FW without losing current configuration
A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration
RutOS (OpenWrt based Linux OS)
Busybox shell, Lua, C, C++
SDK package with build environment provided
You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
The Package Manager is a service used to install additional software on the device
RJ45 Socket
44.0 – 57.0 V
802.3af PoE Class 1
< 2 W Max
1 x RJ45 ports, 10/100 Mbps
1 x Power LED (can be turned off from web-UI)
2 x Internal for 2.4 GHz Wi-Fi
2 x 2400 - 2500 MHz, 50 Ω, VSWR <2.7, gain < 4.9 dBi, omnidirectional
Reboot/User default reset/Factory reset button
UV stabilized plastic
Ø 158 mm x 30 mm
190 g

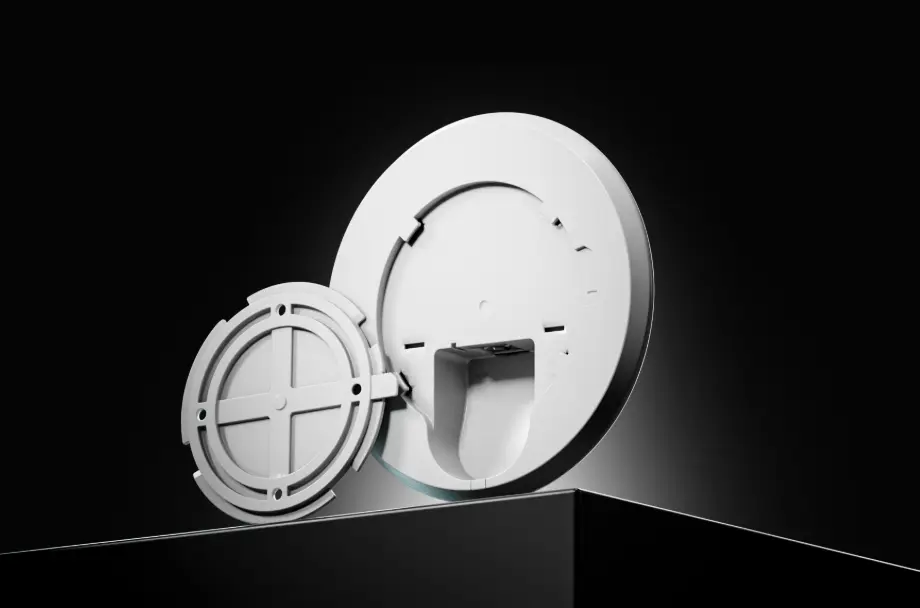

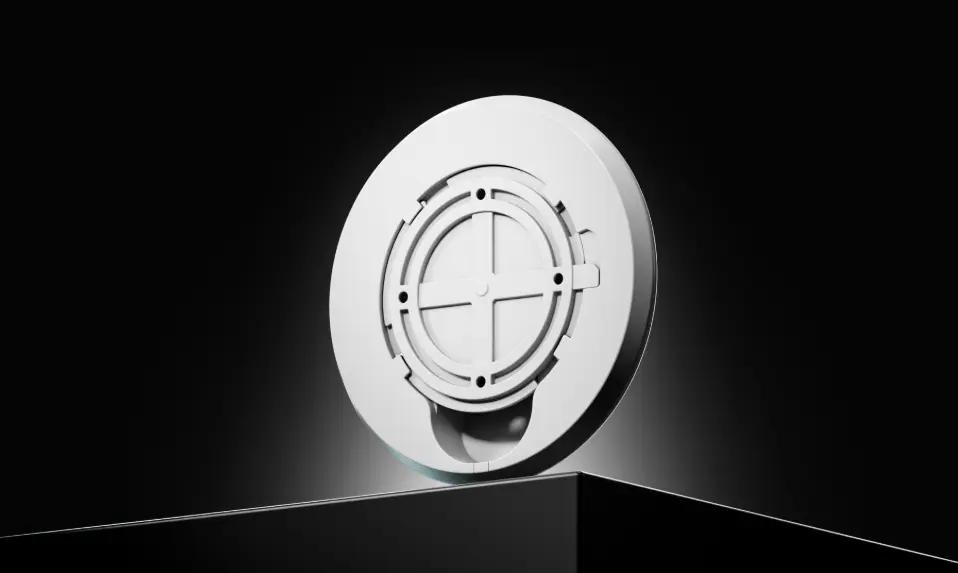

AP mounting bracket (for ceiling mount)
-40 °C to 75 °C
10% to 90% non-condensing
IP30
CE, UKCA, EAC, ANRT, Kenya, SDPPI (POSTEL), CB, FCC, IC, RoHS, REACH, WEEE
EN 55032:2015 + A11:2020
EN 55035:2017 + A11:2020
EN 61000-3-3:2013 + A1:2019 + A2:2021
EN IEC 61000-3-2:2019 + A1:2021
EN 301 489-1 V2.2.3
EN 301 489-17 V3.2.4
EN 61000-4-2:2009
EN IEC 61000-4-3:2020
EN 61000-4-4:2012
EN 61000-4-5:2014 + A1:2017
EN 61000-4-6:2014
EN IEC 61000-4-11:2020
EN 300 328 V2.2.2
CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020
RCM: AS/NZS 62368.1:2022
CB: IEC 62368-1:2018
