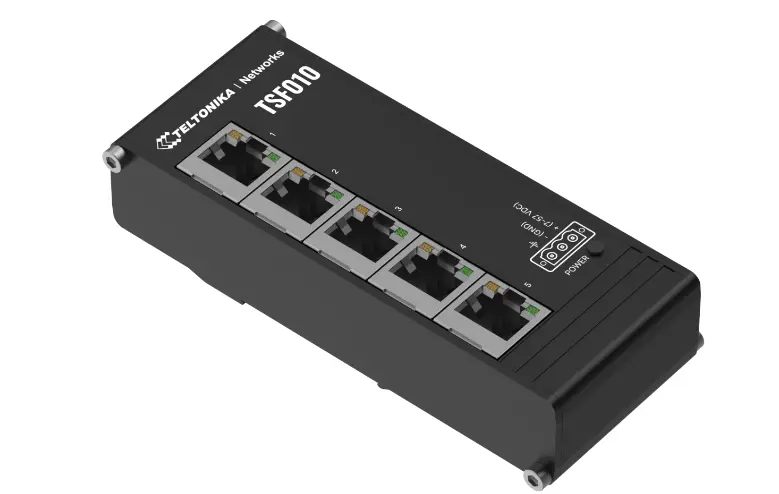

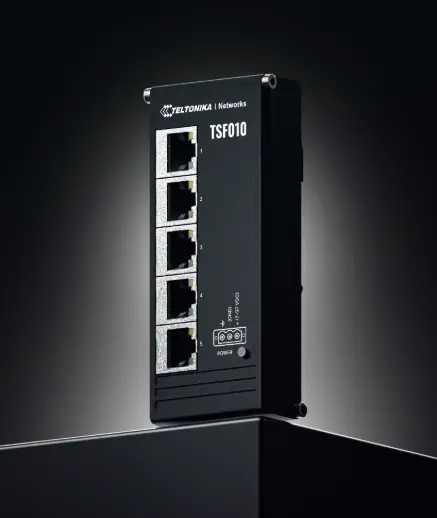

TSF010

Profinet Class A conformance (available with optional order code)

5 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover

802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

3-pin industrial DC power socket

7 – 57 VDC, overvoltage protection: 60 Vmax, reverse polarity protection: 80 Vmax,

surge protection: min 64.4V/max 71.2V breakdown voltage,

93.6V maximum reverse voltage @4.3A maximum reverse surge current

12-40 VAC (50/60Hz)

*Feature availability varies by order code

Idle: 1 W / Max: 1.5 W

5 x RJ45 ports, 10/100 Mbps

1 x Power LED, 10 x ETH status LEDs

1 x 3-pin industrial DC power socket

Grounding terminal on power connector

Anodized aluminum housing and panels

113 x 28 x 50 mm

142 g

Integrated DIN rail bracket

-40 °C to 75 °C

5% to 95% non-condensing

IP30

10 Gbps

128 KB

2K entries

9216 bytes
