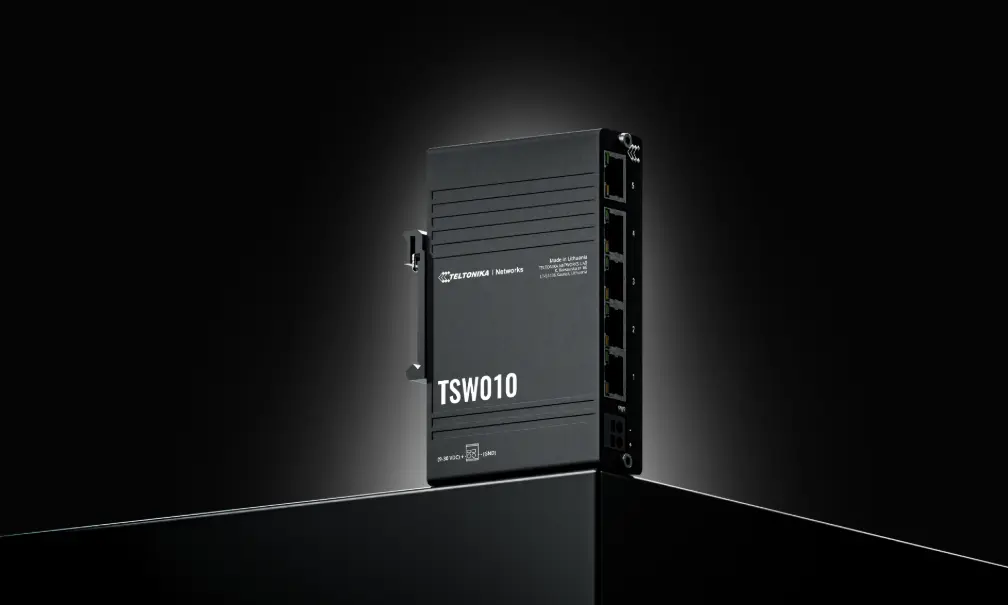

TSW010

Features

Profinet Class A conformance (available with optional order code)

5 x ETH port, 10/100 Mbps, supports auto MDI/MDIX crossover

802.3i, 802.3u, 802.3x, 802.3az

2-pin industrial DC power socket

9 – 30 VDC

Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC

 Idle: 0.3 W / Max: 0.9 W

5 x RJ45 ports, 10/100 Mbps

1 x Power LED, 10 x ETH status LEDs

1 x 2-pin industrial DC power socket

Aluminium housing

113.1 x 27.4 x 80.5 mm

146.5 g

Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)

-40 °C to 75 °C

5% to 95% non-condensing

IP30

CE, UKCA, EAC, FCC, IC, CB, RCM, CITC, ANRT, SDPPI (POSTEL), Kenya, REACH, RoHS, WEEE, UL Safety

EN 55032:2015 + A11:2020 + A1:2020

EN 55035:2017 + A11:2020

EN 61000-4-2:2009

EN IEC 61000-4-3:2020

EN 61000-4-4:2012

EN 61000-4-5:2014 + A1:2017
