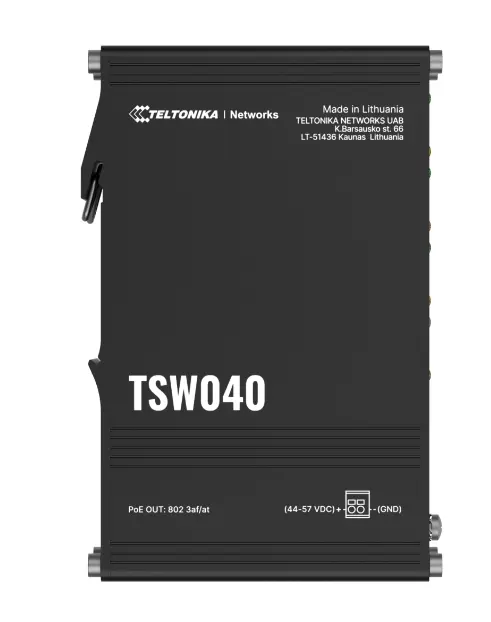

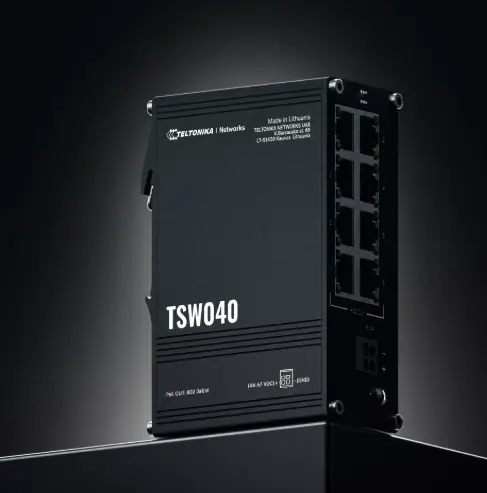

TSW040

Profinet Class A conformance (available with optional order code)

8 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover

802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

Port 1 - 8

IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2) compliant PSE ports, over spare pairs (Mode B)

30 W

240 W

2-pin industrial DC power socket

7 – 57 VDC, overvoltage protection: 60Vmax, reverse polarity protection: 80Vmax, surge protection: min 64.4V/max 71.2V breakdown voltage, 93.6V maximum reverse voltage @4.3A maximum reverse surge current, 1- Vin, 2-PGND

44 – 57 VDC

Idle: 1 W / Max: 2 W / PoE Max: 246 W

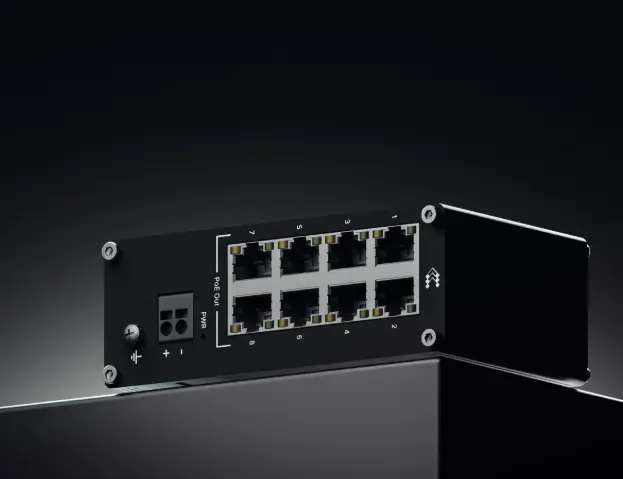

8 x RJ45 ports, 10/100 Mbps

1 x Power LED, 16 x ETH status LEDs

1 x 2-pin industrial DC power socket

1 x Grounding screw

Anodized aluminum housing and panels

113.1 x 41.2 x 74.6 mm

Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)

280 g

-40 °C to 75 °C

5% to 95% non-condensing

IP30

20 Gbps

128 KB

2K entries

9216 bytes
