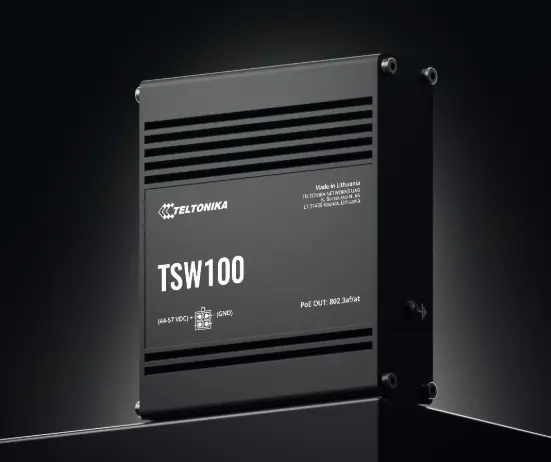

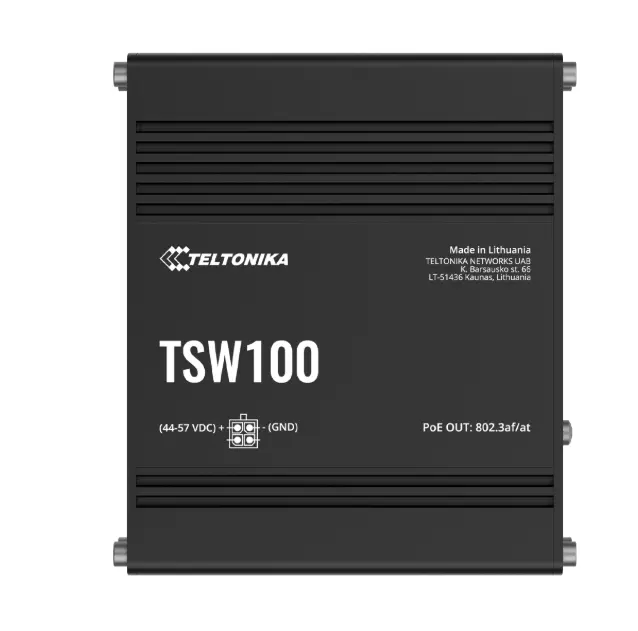

TSW100
Profinet Class A conformance (available with optional order code)
5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Port 1 - 4
IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative A (Order code: TSW100 *1****)
IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative B (Order code: TSW100 *0****)
30 W
120 W
4-pin industrial DC power socket
7 – 57 VDC
44 – 57 VDC
Idle: 2 W / Max (no PoE): 9 W / PoE Max: 129 W

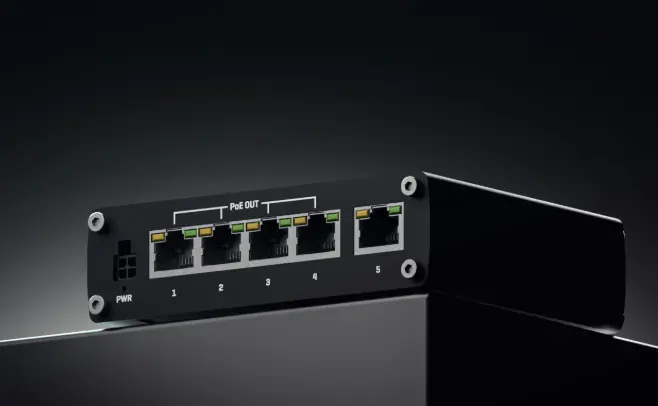

5 x RJ45 ports, 10/100/1000 Mbps
1 x Power LED, 10 x ETH status LEDs
1 x 4-pin power connector

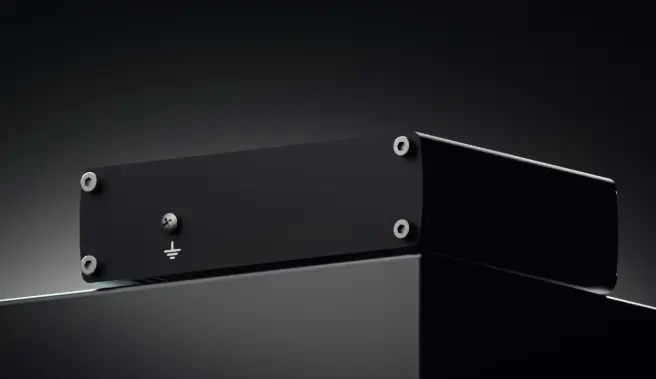

1 x Grounding screw
Full aluminum housing
115 x 32.2 x 101.2 mm
350 g
DIN rail, wall mount, flat surface (all require additional kit)
-40 °C to 75 °C
5% to 95% non-condensing
IP30
CE, UKCA, EAC, UCRF, CITC, ANRT, FCC, IC, NOM, Anatel, CB, E-mark
EN 55032:2015
EN 55035:2017
EN 301 489-1 V2.2.3
EN 61000-4-2:2009
EN IEC 61000-4-3:2006 + A1:2008 + A2:2010
EN 61000-4-4:2012
EN 61000-4-5:2014
EN 61000-4-6:2014
EN 61000-4-11:2004
IEC 62368-1:2018
EN IEC 62368-1:2020+A11:2020
10 Gbps
128 KB
2K entries
9216 bytes
