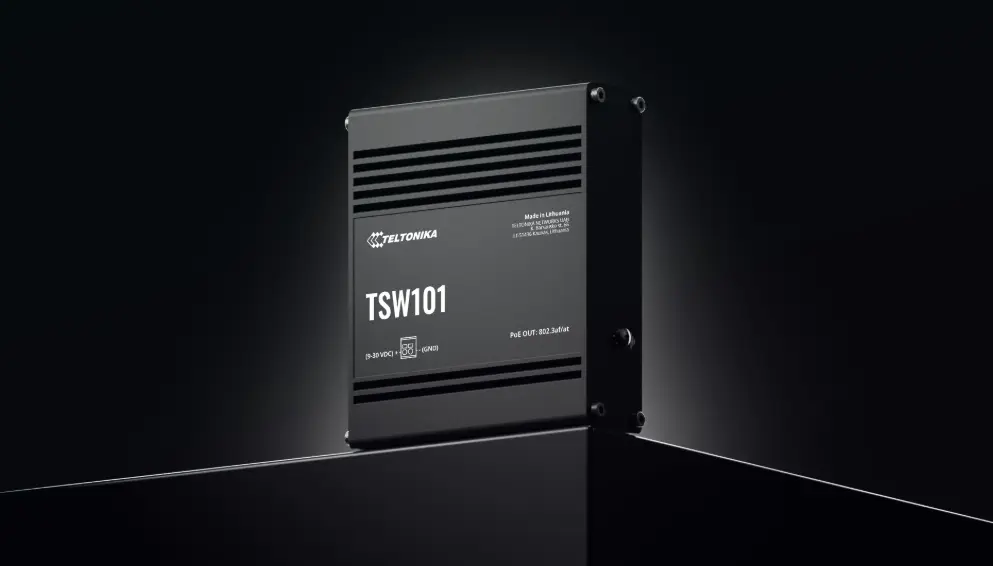

TSW101
Profinet Class A conformance (available with optional order code)
5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Port 1 - 4
IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative A
30 W
60 W
100 m
2-pin industrial DC power socket
9 – 30 VDC
9 – 30 VDC
Idle: 0.64 W / Max: 2.31 W / PoE Max: 62.3 W
12 V or 24 V car battery-powered. No additional PSU is required.
5 x RJ45 ports, 10/100/1000 Mbps
1 x Power LED, 10 x ETH status LEDs
1 x 2-pin industrial DC power socket
1 x Grounding screw
Aluminium housing
115 x 32 x 95 mm
384 g
DIN rail, wall mount, flat surface (all require additional kit)
-40 °C to 75 °C
5% to 95% non-condensing
IP30
CE, REACH, RoHS, WEEE
TSW101 CE
TSW101 UKCA
TSW101 FCC
TSW101 IC
TSW101 CB
TSW101 RCM
E-Mark
EN 55032:2015 + A11:2020 + A1:2020
EN 55035:2017 + A11:2020
EN 61000-4-2:2009
EN IEC 61000-4-3:2020
EN 61000-4-4:2012
EN 61000-4-5:2014 + A1:2017
EN 61000-4-6:2014
CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020, EN 50665:2017
RCM: AS/NZS 62368.1:2022
CB: IEC 62368-1:2018
10 Gbps
128 KB
2K entries
