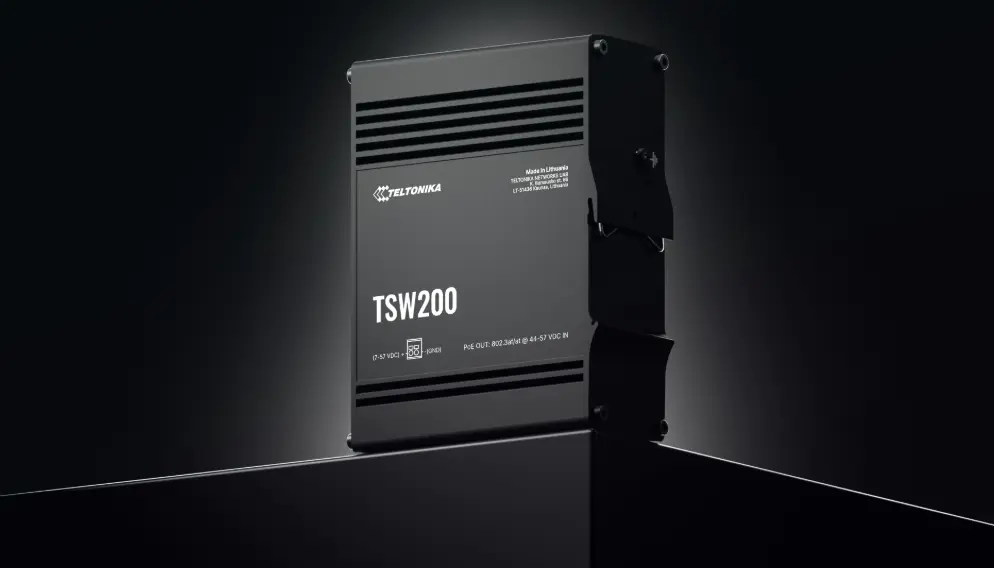

TSW200
Profinet Class A conformance (available with optional order code)
8 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
2 x SFP ports
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Port 1 - 8
IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative A (From batch 42)
IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative B (From batch 1-41)
30 W
240 W
2-pin industrial DC power socket
7 – 57 VDC
44 – 57 VDC
Idle: 1.81 W / Max: 5.5 W / PoE Max: 245.5 W
8 x RJ45 ports, 10/100/1000 Mbps
2 x SFP ports
1 x Power LED, 16 x ETH status LEDs 2 x SFP status LEDs
1 x 2-pin industrial DC power socket
1 x Grounding screw
Full aluminum housing
132 x 44.2 x 95.1 mm
517 g
Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)
-40 °C to 75 °C
5% to 95% non-condensing
IP30
CE, UKCA, CITC, ANRT, FCC, IC, CB
EN 55032:2015 + A1:2020
EN 55035:2017 + A11:2020
EN IEC 61000-3-2:2019 + A1:2021
EN 61000-3-3:2013 + A1:2019
EN 61000-4-2:2009
EN IEC 61000-4-3:2020
EN 61000-4-4:2012
EN 61000-4-5:2014 + A1:2017
EN 61000-4-6:2014
EN IEC 61000-4-11:2020
IEC 62368-1:2018
EN IEC 62368-1:2020+A11:2020
20 Gbps
128 KB
2K entries
