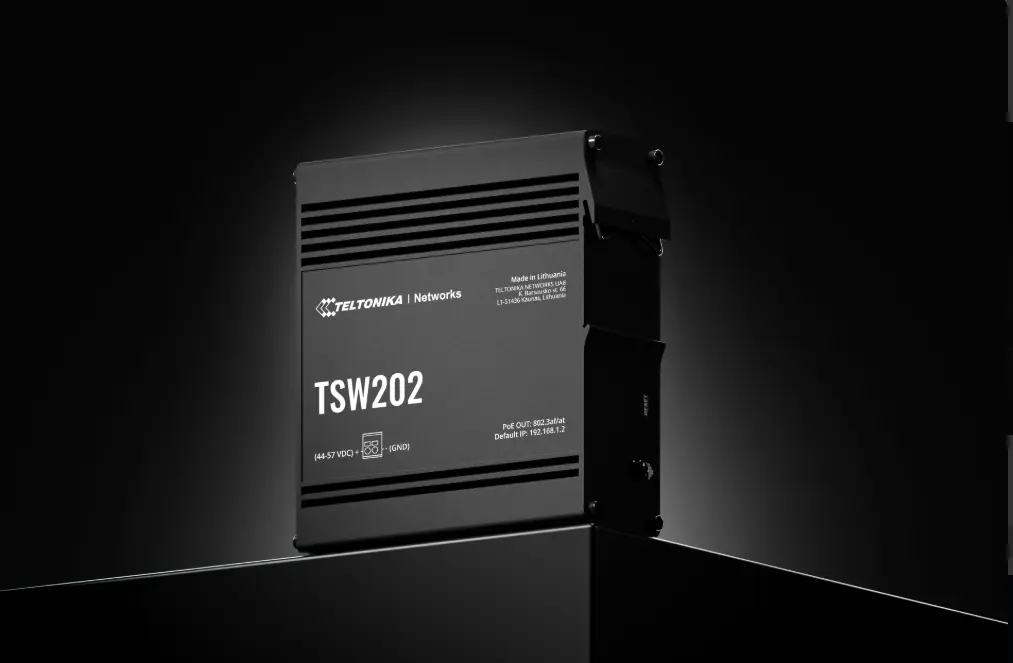

TSW202
Profinet Class B conformance (available with optional order code)
Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover
2 x SFP ports
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
MRP client role, MRP manager role
Loop protection, Forwarding table, VLAN, STP/RSTP
DHCP server, DHCP client, DHCP static leases capable of using MAC with wildcards
Enable/disable, link speed control, port isolation, PoE Management, EEE (802.3az) management, Port Mirroring
Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address
PAM — preshared key, Radius & TACACS+, IP & login attempts block
Allow specific MAC addresses to connect through specified ports, ignore unauthorized or disable the port if an unauthorized MAC address is detected
Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com
128MB, DDR3
16 MB serial flash
Update FW from file, check FW on server, configuration profiles, configuration backup
Update FW
Update FW/configuration for multiple devices at once
Update FW without losing current configuration
TSWOS (OpenWrt based Linux OS)
Busybox shell, Lua, C, C++
SDK package with build environment provided
Port 1 - 8
IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative A (Batch 15 and all batches from Batch 17 onward)
IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative B (Batches 1–14 and Batch 16)
30 W
240 W
100 m
2-pin industrial DC power socket
7 – 57 VDC
44 – 57 VDC
Idle: < 3 W / Max: 8 W / PoE Max: 248 W
8 x RJ45 ports, 10/100/1000 Mbps
2 x SFP ports
1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs
1 x 2-pin industrial DC power socket
Software reset button
1 x Grounding screw
Anodized aluminum housing and panels
132 x 44.2 x 122.2 mm
610 g
Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)
-40 °C to 75 °C
5% to 95% non-condensing
IP30
CE, UKCA, RCM, ANRT, FCC, IC, CB, NBTC, PROFINET, CITC, RoHS, REACH, WEEE, SDPPI (POSTEL), JATE, Kenya, ICASA, Giteki`, UL Safety
EN 55032:2015 + A11:2020 + A1:2020
EN 55035:2017 + A11:2020
EN IEC 61000-3-2: 2019 + A1:2021
EN 61000-3-3: 2013 + A1:2019 + A2:2021
EN 61000-4-2:2009
EN IEC 61000-4-3:2020
EN 61000-4-4:2012
EN 61000-4-5:2014 + A1:2017
EN 61000-4-6:2014
EN 61000-4-11:2020
CE: EN IEC 62368-1:2020 + A11:2020
RCM: AS/NZS 62368.1:2022
CB: IEC 62368-1:2018
Yes
Yes
Yes
